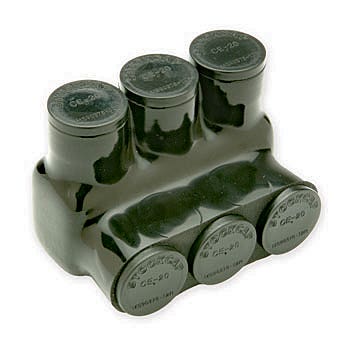

4-14SOL SINGLE-SIDED ENTRY 3 CONDUCTORS BLACK

Insulated Multi-Tap Connector Product Details:

IPB-S/IPBB-S series insulated multi-tap connectors are rated for voltages up to 600V and are suitable for use in cable trays, raceways, ducts and troughs. Pre-filled with an oxide inhibitor that prevents oxidation, moisture and contaminants from entering the contact area. Pre-insulated at factory with clear high dielectric strength plastisol.

Style - Pre-Insulated Power Bars Single-Sided Conductor Entry
Conductor Material - High strength aluminum alloy
Wire Range - #14 - #4 Awg
Insulation Type - Black
Number of Conductors - 3
Length - 1.99"
Width - 1.13"
Height - 1.25"
Hex Screw Size - 1/8


Approvals

cULus - AL9CU
RoHS
