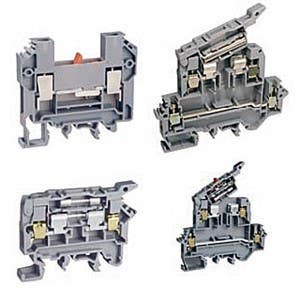

Disconnect and Fuse Terminal Blocks
DISCONNECTDisconnect terminals and test terminals are an ideal choice for measuring control and regulatory circuits. The Disconnect and Fuse Terminal blocks provide a clear functional advantage for devices having utility instruments and associated transformers. Five versions of disconnect and test terminals are available.
FUSE BLOCKS
Certain electrical and control systems require protection by fuses. CSFL4U and CSFL6U have a specially designed space for cartridge type glass fuse and accept Ø5 x 20 or Ø5 x 25 mm fuses. CAFL4U accepts Ø1/4 x 1-1/4 in. fuses. The fuse can be engaged or is engaged by the movement of the carrier. Fuse terminals are also available with light indication - CSFL4U(L).
A specially designed built-in circuit gives light indication in the event of fuse blow out. Thus, fault in a circuit can be easily located.
-
16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) Learn More -
sku:CAFL4U(L)/110 16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH LED OFF-LINE INDICATION 110V$5.18 /EA16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH LED OFF-LINE INDICATION 110V Learn More -
sku:CAFL4U(L)/24 16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH LED OFF-LINE INDICATION 24V$4.81 /EA16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH LED OFF-LINE INDICATION 24V Learn More -
sku:CAFL4U(N) 16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH NEON OFF-LINE INDICATION 110-220V$5.18 /EA16A FUSE TERMINAL BLOCKS 600V #22-#10AWG WIRE 9MM(W) X 72MM(H) WITH NEON OFF-LINE INDICATION 110-220V Learn More -
41A SLIDE DISCONNECT TERMINAL BLOCK 600V #16-#8AWG 8MM(W) X 63MM(H) GRAY Learn More -
sku:CKT4U 35A DISCONNECT TERMINAL BLOCK WITH LIFT LEVER AND KNIFE CONTACT 600V 22-10GA 6MM(W) X 46.3MM(H)$2.80 /EA35A DISCONNECT TERMINAL BLOCK WITH LIFT LEVER AND KNIFE CONTACT 600V 22-10GA 6MM(W) X 46.3MM(H) Learn More -
14A DISCONNECT TERMINAL BLOCK 600V #22-#10GA 8MM(W) X 58MM(H) Learn More -
FUSE TERMINAL 5X20/5X25MM 6.3A 600V 22-12GA 8MM GRAY Learn More -
USE CF4UL110-240V W/LED 110VAC/DC 5X205X25MM FUSE GRAY Learn More -
FUSE TERMINAL W/LED 24VAC/DC 5X205X25MM FUSE GRAY Learn More -
FUSE TERMINAL W/LED 48VAC/DC5X205X25MM FUSE GRAY Learn More -
FUSE TERMINAL 5X20/5X25MM 6.3A 600V 22-12GA 8MM RED Learn More -
FUSE TERMINAL 5X20MM BLUE 6.3A 600V 22-8GA8MM Learn More -
FUSE TERMINAL 5X20MM RED 6.3A 600V 22-8GA 8MM Learn More
-
sku:DDFL4U 35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY$4.63 /EA35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY Learn More -
sku:DDFL4U(E)/110 35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH 110V LED INDICATOR$6.03 /EA35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH 110V LED INDICATOR Learn More -
sku:DDFL4U(E)/24 35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH 24V LED INDICATOR$6.03 /EA35A DOUBLE LEVEL FUSE TERMINAL BLOCK (6.3A TOP LEVEL) 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH 24V LED INDICATOR Learn More -
sku:DDFL4U(E)LR 6.3A DOUBLE LEVEL FUSE TERMINAL BLOCK 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH BLOWN FUSE LED INDICATOR$7.08 /EA6.3A DOUBLE LEVEL FUSE TERMINAL BLOCK 600V #22-#12AWG 8MM(W) X 88MM(H) GRAY WITH BLOWN FUSE LED INDICATOR Learn More
