Cam Lock Connectors

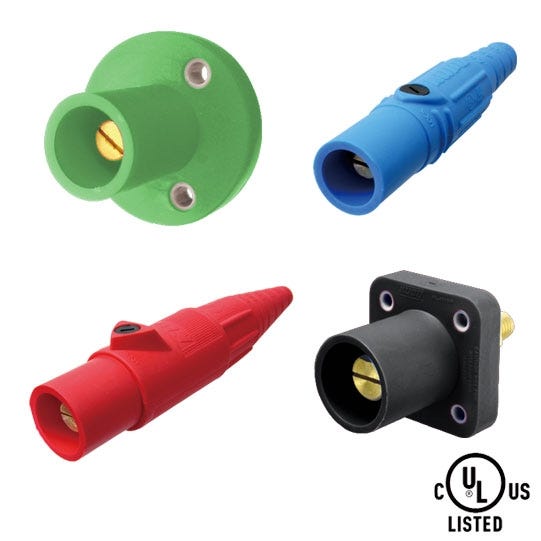

Single pole Cam Lock Connectors are a proven solution for generators, motors, load banks, stage entertainment, portable power and various industrial applications. Our rugged Cam Lock Connectors are available in 400Amp and 150Amp versions and are designed with materials for superior durability and conductivity. Our Cam Lock Connectors are an excellent compliment to our popular line of Pin & Sleeve Connectors.

3-Phase Electrical Color Codes (North America): 120/208/240V and 277/480V

3-Phase Electrical System Color Codes (North America)

Reference guide for conductor identification in 120/208/240V and 277/480V three-phase systems.

277/480 Volt 3-Phase System (High Voltage Industrial)

This color coding scheme is commonly used in industrial environments for higher-voltage systems to clearly differentiate phase conductors for safety and maintenance.

Phase & Ground Color Codes

  • L1 (Line 1): Brown
  • L2 (Line 2): Orange
  • L3 (Line 3): Yellow
  • N (Neutral): Gray
  • PE (Protective Earth / Ground): Green or Green with Yellow Stripe

Note: This scheme is widely adopted in North America for 277/480V systems.

120/208/240 Volt 3-Phase System (Standard NEMA Colors)

Used in commercial and residential applications, this system follows the standard NEMA color codes.

Phase & Ground Color Codes

  • L1 (Phase 1): Black
  • L2 (Phase 2): Red
  • L3 (Phase 3): Blue
  • Neutral (N): White
  • Protective Earth (PE) / Ground: Green or Green with Yellow Stripe

Standard Compliance: These colors align with common North American practices for low-voltage 3-phase systems.
