ALUMINUM LUG 250MCM 3/8" RED 1HOLE

SKU: BLUA025S2
Material: Aluminum
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

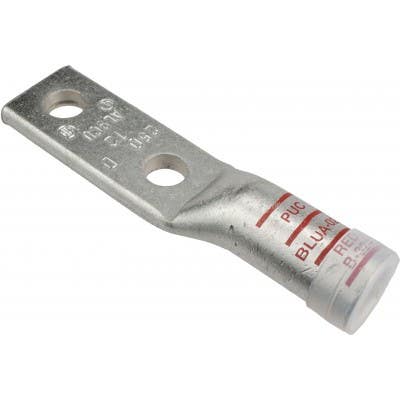

Aluminum Crimp Lugs Product Details:

BLUA series aluminum lugs are pre-filled with oxide inhibitor and capped.  Closed transition from barrel to tongue of the lug protects cable from environmental hazards.

Style - Seamless, One Piece Aluminum Compression Lug
Material - Pure Aluminum with Tin Plating
Wire Size - 250 MCM
Color Code - Red
Wire Diameter - .575"
Stud Size - 3/8"
Length - 3"


Approvals

UL - AL9CU
CSA

Spec Sheets 84WMP.pdf
Type Lug
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
