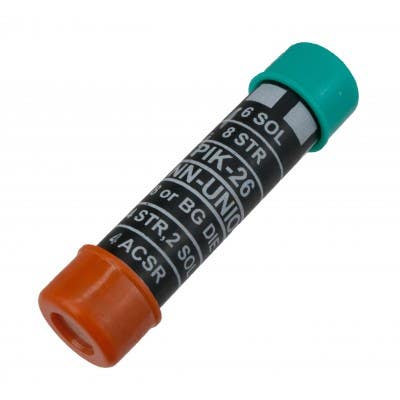

NYLON INSULATED 4-2 AWG ORANGE TO 8-6 AWG GREEN SERVICE ENTRANCE SLEEVES

Aluminum Pre-Insulated Service Entrance Sleeve Product Details:

Type - PIK
Material - Forged from pure Aluminum with Nylon Jacket. Pre-filed with oxide inhibitor. Polyethelene color-coded caps.
Conductor Range A - AL/CU Stranded - #4 to AL/CU Solid - #2
                                     - Cap Color Code - Orange
Conductor Range B - AL/CU Stranded - #8 to AL/CU Solid - #6
                                     - Cap Color Code - Green
Length - 2-7/8"
O.D - 5/8"


Approvals

RUS Accepted

RoHS Compliant

Conforms to ANSI C 119.4 when properly installed
