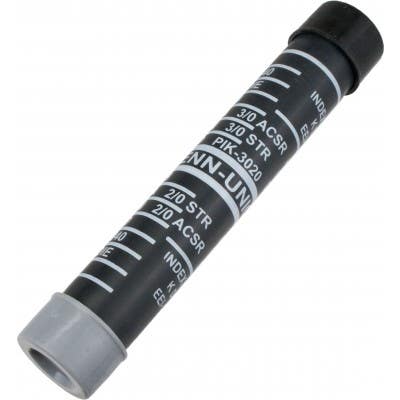

NYLON INSULATED 3/0 AWG BLACK TO 2/0 AWG GRAY SERVICE ENTRANCE SLEEVES

SKU: PIK3020
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

Aluminum Pre-Insulated Service Entrance Sleeve Product Details:

Type - PIK
Material - Forged from pure Aluminum with Nylon Jacket. Pre-filed with oxide inhibitor. Polyethelene color-coded caps.
Conductor Range A - AL/CU Stranded - 3/0
                                     - Cap Color Code - Black
Conductor Range B - AL/CU Stranded - 2/0
                                     - Cap Color Code - Gray
Length - 5-1/2"
O.D - 0.840"


Approvals

RUS Accepted

RoHS Compliant

Conforms to ANSI C 119.4 when properly installed

Spec Sheets Aluminum-Pre-Insulated-Service-Entrance-Sleeves-TYPE-PIK.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
