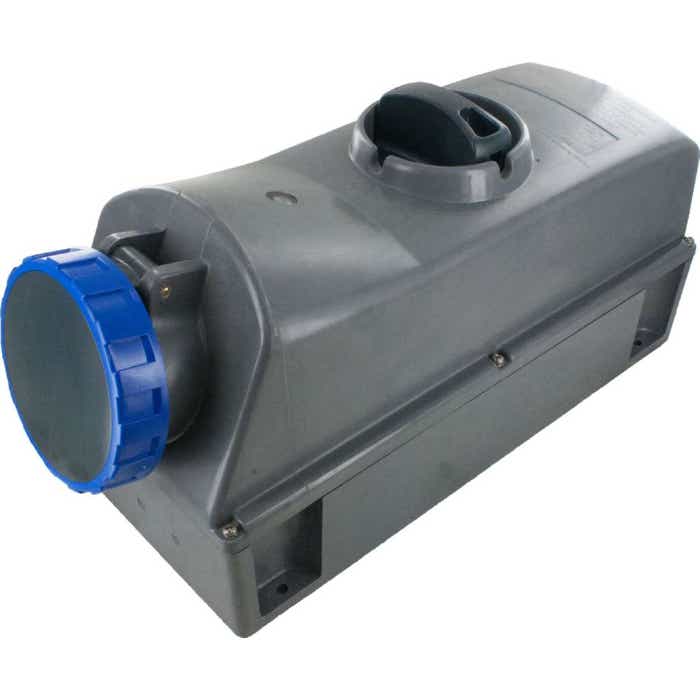

460MI9W 60 AMP PIN AND SLEEVE MECHANICAL INTERLOCK 3 PHASE 250V 3 POLE 4 WIRE 9H GROUND PIN

SKU: SCM460MI9W
Download Spec Sheet
Manufactured In: Italy
Shipping: Available to ship in: Same Day

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Mechanical Interlock Pin and Sleeve Product Details:

Pole/Wires - 3 Pole 4 Wire
Clock Position - 9h
Configuration - Female Mechanical Interlock
Voltage - 3 Phase 250V AC
Amperage - 60 Amp
Max. Horsepower - 15Hp
Color Code - Blue
Protection Degree - IP67 Watertight, UL 94 Type 3R, 4/4X, 12
Power Indicator LED - Red when ON

Wire Size Range

Switch / Ground / Neutral - #6 - #1 Awg
Auxiliary Contact - #18 - #10 Awg

Compatibility Reference Standards

EN 60309-1
Plugs, socket-outlets and couplers for industrial purposes.
EN 60309-4
Switched socket-outlets and connectors with or without interlock

IEC 60309
Allows complete interchangeable mating between all major manufacturers of 460P9W plugs.

Mates with: 460P9W

Ratings

UL Classified - E238170

cULus Listed - E238171, E238172


Materials for Mechanical Interlock Pin & Sleeve Connectors

Housing - Glass Reinforced Polyester (GRP) for high performance against impact, UV, and chemical resistance.
Hardware - Captive Stainless Steel closing screws

Spec Sheets Pin-And-Sleeve-Mechanical-Interlocks-60-Amp.pdf
Made In Italy
Shipping Same Day
Unit of Measure Quantity 1
Unit Of Measure EA
