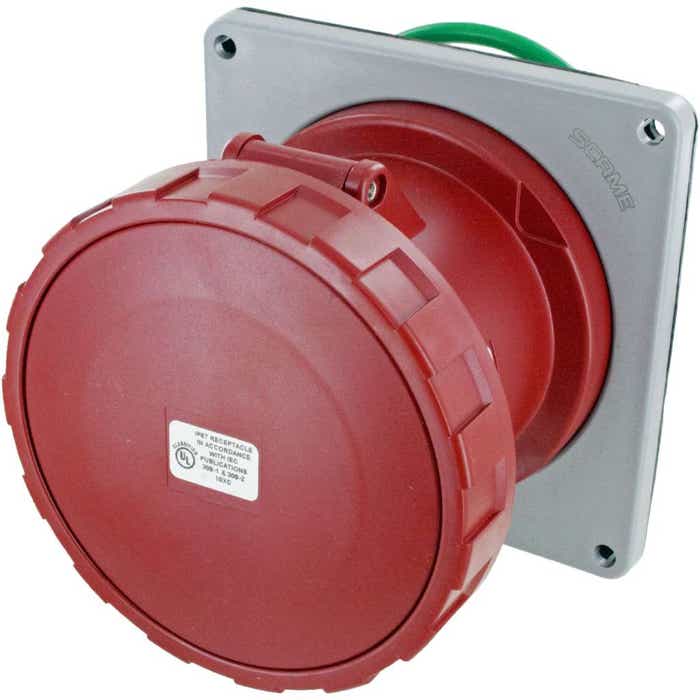

PIN & SLEEVE FEMALE RECEPTACLE 125AMP 380-415VAC 3P 4W IP67 WATERTIGHT

SKU: SCM4125R6W
Download Spec Sheet
Manufactured In: Italy
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

Product Details:

Pole/Wires - 3 Pole 4 Wire
Clock Position - 6h
Configuration - Female Receptacle
Voltage - 380-415V AC
Amperage - 125 Amp
Color Code - Red
Protection Degree - IP67 Watertight
Cable Size Range - #4 Awg - #1 Awg (G or W cable)
Cable O.D. Range - 1.265" - 1.79"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 4125R6W receptacles.

Mates with: 4125P6W

Ratings

UL Classified - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Spec Sheets 125-Amp-Pin-And-Sleeve-Connectors-Watertight.pdf
Made In Italy
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
