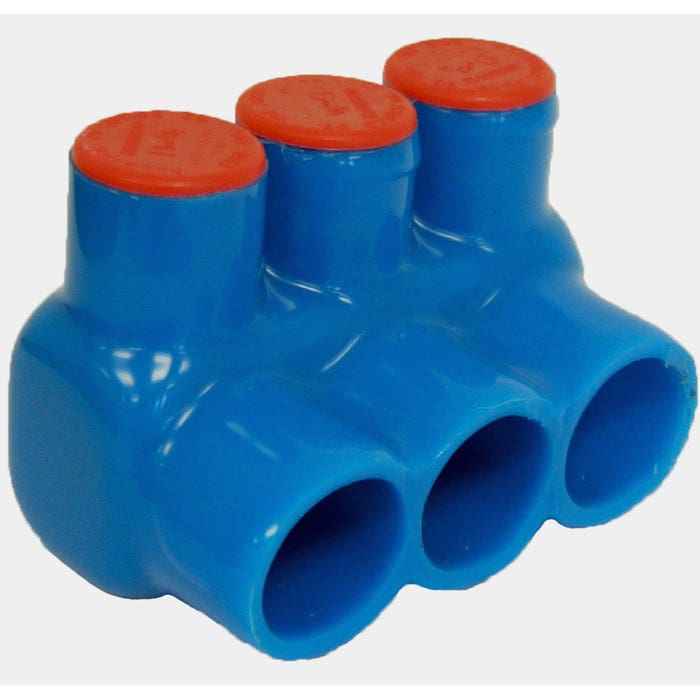

INSULATED MECHANICAL CONNECTOR 8 SOL. - 1/0 STR. AWG-CU

Insulated Multi-Tap Connector Product Details:

IMLC™ series insulated multi-tap connectors are rated for voltages up to 600V and are suitable for use in cable trays, raceways, ducts and troughs. These Penn-Union Insulated MOTOR LEAD connectors are for use with copper cable. The multiple port (multi tap) insulated copper alloy bars mechanically connect incoming copper power leads to the winding leads of the motor in the motor junction box.

Style - Pre-Insulated Power Bars, Single-Sided Conductor Entry
Conductor Material - High conductivity aluminum alloy
Number of Conductors: 3
Wire Range - #8 - 1/0 Awg
Insulation Type - Copper Blue
Length - 2.46"
Width - 1.50"
Height - 1.48"
Hex Screw Size - 1/4


Approvals

cULus - AL9CU
RoHS
