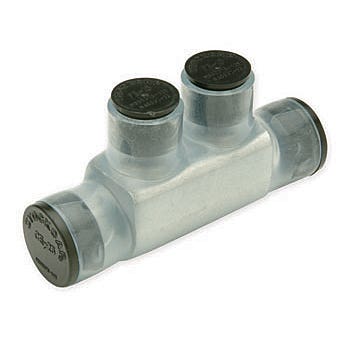

CLEAR INSULATED SPLICER REDUCER #10 to 350MCM CABLE RANGE
Main image
Click to view image in fullscreen
![]()
SKU:
IISR350
$24.30
/EA
$24.30
/EA
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days
Ships from our warehouse in Sanborn, NY 14132
Need Help
Talk to a Product Expert M-F 8am-5:30pm EST
1-800-701-0975
Email us for Quick Support
Email UsInsulated Multi-Tap Connector Product Details:
IISR series insulated multi-tap connectors are rated for voltages up to 600V and are suitable for use in cable trays, raceways, ducts and troughs. Pre-filled with an oxide inhibitor that prevents oxidation, moisture and contaminants from entering the contact area. Pre-insulated at factory with clear high dielectric strength plastisol.
Style - Pre-Insulated In-Line Splicer /Reducers
Conductor Material - High strength aluminum alloy
Wire Range - #10 - 350 MCM
Insulation Type - Clear
Length - 4.63"
Width - 1.34"
Height - 2.35"
Hex Screw Size - 5/16
Approvals
cULus - AL9CU
RoHS
