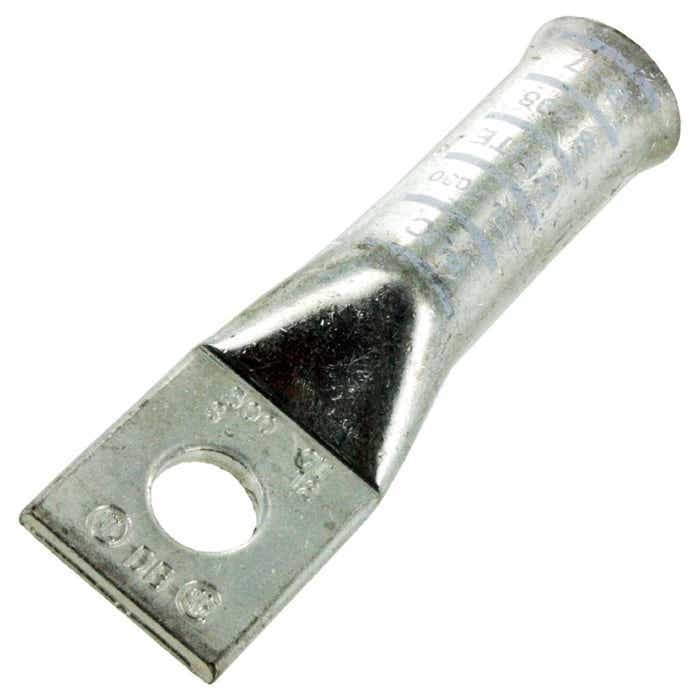

LONG BARREL COPPER LUG 4/0AWG DLO/WELDING CABLE (300MCM STANDARD CONDUCTOR) 1 HOLE 1/2" WHITE FLARED

SKU: BBLU030SFL
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

DLO Cable Flared Copper Compression Lug Product Details:

Barrel - Long Flared
Conductor Size - DLO CABLE 4/0 Awg; Copper Conductor Size 300 MCM
Material - Tin-plated seamless copper tubing
Suitable for use with Class B, C, I, K, H, G, M and DLO Conductors
Length - 3.81"
Barrel Length - 2.00"
Wire Strip Length - 2-1/8"
Color Code - White

Holes - 1

Stud Hole Size - 1/2"


Approvals

UL Listed

CSA
RoHS

Spec Sheets 118WMP.pdf
Type Lug
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
