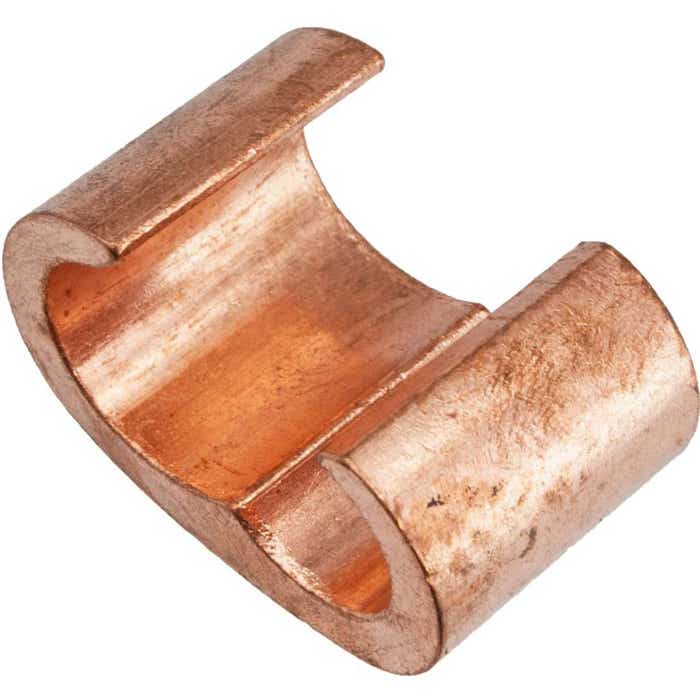

RTC series Range Taking C-Tap connectors are used for copper to copper tapping, splicing or pig-tailing. Compact size allows for easy taping and insulation of connection. Color-coded for easy crimp die selection.
Material - Copper
C-Tap Conductor Ranges: - Run 4/0 Awg / Tap 4/0 - 2/0 Awg - Run 250 MCM / Tap 250 MCM - #1 - Run 300 MCM / Tap 4/0 Awg - #4 - Run 350 MCM / Tap 3/0 Awg - #6
Length - 1.03"
Approvals
cULus to UL 486A-486B for power applications cULus to UL 467 for grounding, bonding and direct burial applications
RTC series Range Taking C-Tap connectors are used for copper to copper tapping, splicing or pig-tailing. Compact size allows for easy taping and insulation of connection. Color-coded for easy crimp die selection.
Material - Copper
C-Tap Conductor Ranges: - Run 4/0 Awg / Tap 4/0 - 2/0 Awg - Run 250 MCM / Tap 250 MCM - #1 - Run 300 MCM / Tap 4/0 Awg - #4 - Run 350 MCM / Tap 3/0 Awg - #6
Length - 1.03"
Approvals
cULus to UL 486A-486B for power applications cULus to UL 467 for grounding, bonding and direct burial applications
