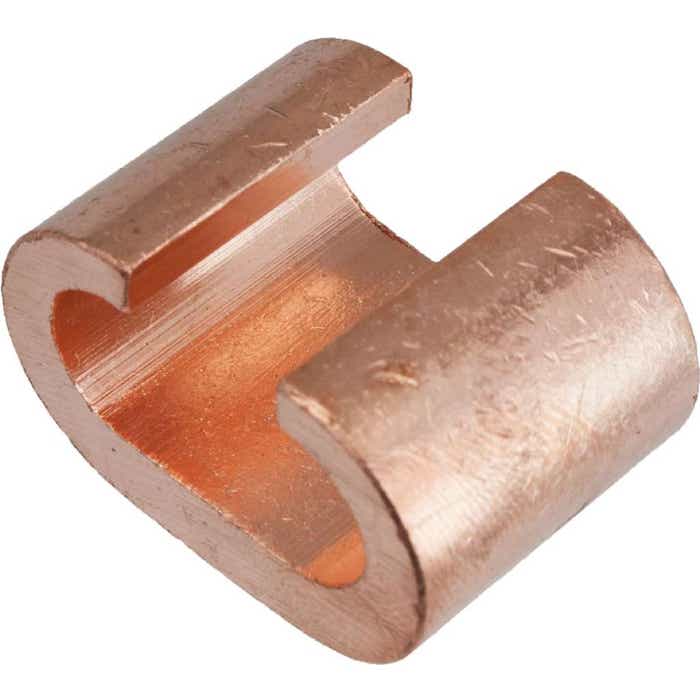

COPPER C-TAP PRESS-ON CONNECTORS. Run Side Wire 1/0 to 2/0 AWG. Tap Side Wire 1/0 to 2/0 AWG

SKU: CCT2020
Material: Copper
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

C-Tap Connector Product Details:

CCT series C-Tap connectors are used for making tap or parallel copper connections. "C" shape reduces install time and heavy wall construction prevents relaxing of the joint after installation.

Material - Copper

C-Tap Conductor Range -
Run: 1/0 - 2/0 Awg (.375" - .419")
Tap: 1/0 - 2/0 Awg (.375" - .419")

Length - 0.94"
Height - 1.38"
Width - 0.81"

Approvals

UL - 486A-B / 467 Suitable for Direct Burial
CSA
RUS Accepted
RoHS

Spec Sheets Copper-C-Taps-Type-CCT.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
