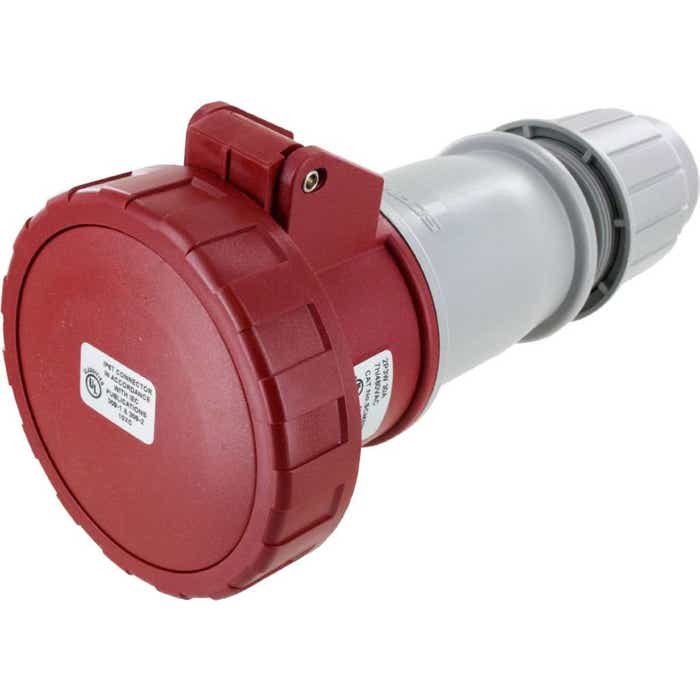

PIN & SLEEVE FEMALE CONNECTOR 30AMP SINGLE PHASE 480VAC 2P 3W IP67 WATERTIGHT
Download Spec Sheet
Ships from our warehouse in Sanborn, NY 14132
Need Help
Talk to a Product Expert M-F 8am-5:30pm EST
Email us for Quick Support
Pin and Sleeve Connector Product Details:
Pole/Wires - 2 Pole 3 Wire
Clock Position - 7h
Configuration - Female Connector
Voltage - 480V AC
Amperage - 30 Amp
Color Code - Red
Protection Degree - IP67 Watertight
Cable Size Range - #10 Awg - #8 Awg (S, SO, SOW cable)
Cable O.D. Range - .675" - .910"
Compatibility Reference Standards
IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
Allows complete interchangeable mating between all major manufacturers of 330C7W connectors.
Mates with: 330P7W / 330B7W
Ratings
UL - E238170
cULus - E238171, E238172
Materials for Pin & Sleeve Connectors
Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®
| Spec Sheets | 30-Amp-Pin-And-Sleeve-Connectors-Watertight.pdf |
|---|---|
| Made In | Italy |
| Shipping | 1-2 Days |
| Unit of Measure Quantity | 1 |
| Unit Of Measure | EA |
