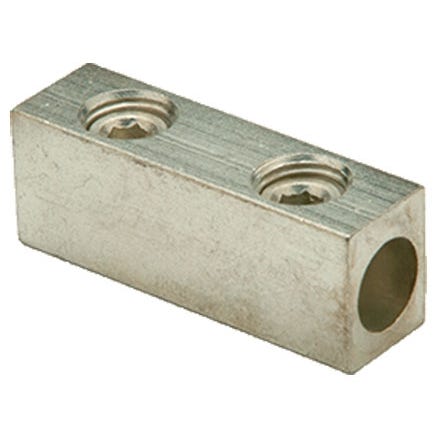

ALUMINUM SPLICER-REDUCER 6-350MCM

SKU: SR3502
Material: Aluminum
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

Aluminum Splicer Reducer Product Details:

Material - Aluminum Alloy Extrusion
Conductor Range - #6 - 350 MCM
Voltage - 600V
Temperature Rating - 194°F (90°C)
Approximate Dimensions - 2.63" Length, 1.13" Width, 1.19" Height

Ratings

UL - 486A-486B Listed AL9CU

CSA

RoHS

Spec Sheets Aluminum-Splicer-Reducer.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
