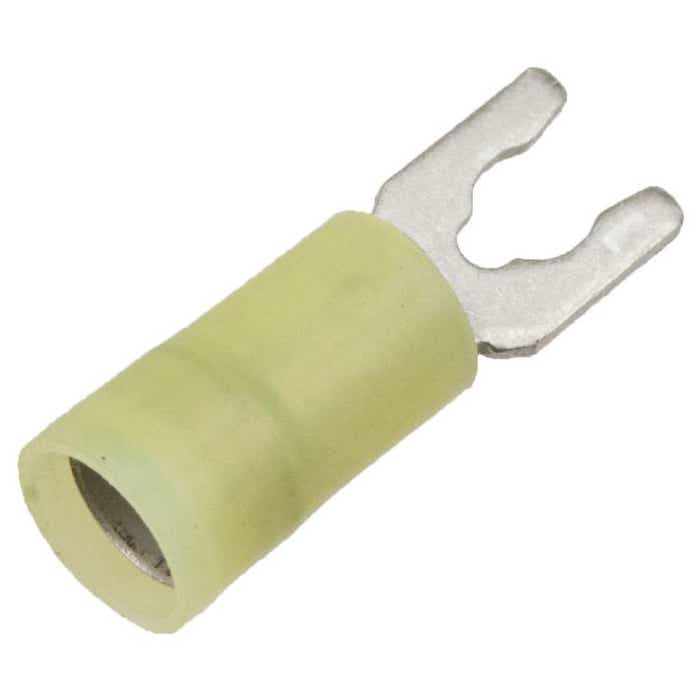

LOCKING-SPADE NYLON YELLOW TERMINAL 12-10 AWG #8 1000PK

SKU: LS6C8M
Material: Nylon
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

Crimp Terminal Product Details:

Style - Locking Spade / Fork Terminal
Insulation - Nylon insulated sleeve
Color - Yellow
Wire Range - 12-10 Awg
Stud (Hole) Size - #8 (.164")
Thickness - .032" stock
Voltage - 600V Max
Temperature - continuous duty from -67°F to 221°F (-55°C to 105°C)

Approvals

UL
CSA
TUV
RoHS

Spec Sheets NULL
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure PK
