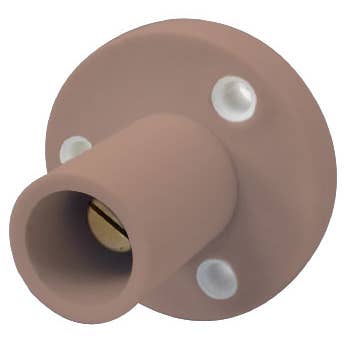

Amperage Rating - 150 Amp Maximum Configuration - Male Receptacle Voltage Rating - 600V Maximum Color Code - Brown Protection Degree - NEMA 3R Cable Size Range - #8 Awg - #2 Awg Cable O.D. Range - Up to 0.54" (13.6mm)
Compatibility Reference Standards:
Compatible with other brands of 150 Amp cam-type connector.
Ratings:
UL/cUL Listed
Materials for 150 Amp Connectors:
Housing Base Compound: Santoprene® - Temperature Rating 221°F (105°C) Contact Material: Brass Retaining Pin Material: POM (Polyoxymethylene)
Amperage Rating - 150 Amp Maximum Configuration - Male Receptacle Voltage Rating - 600V Maximum Color Code - Brown Protection Degree - NEMA 3R Cable Size Range - #8 Awg - #2 Awg Cable O.D. Range - Up to 0.54" (13.6mm)
Compatibility Reference Standards:
Compatible with other brands of 150 Amp cam-type connector.
Ratings:
UL/cUL Listed
Materials for 150 Amp Connectors:
Housing Base Compound: Santoprene® - Temperature Rating 221°F (105°C) Contact Material: Brass Retaining Pin Material: POM (Polyoxymethylene)
