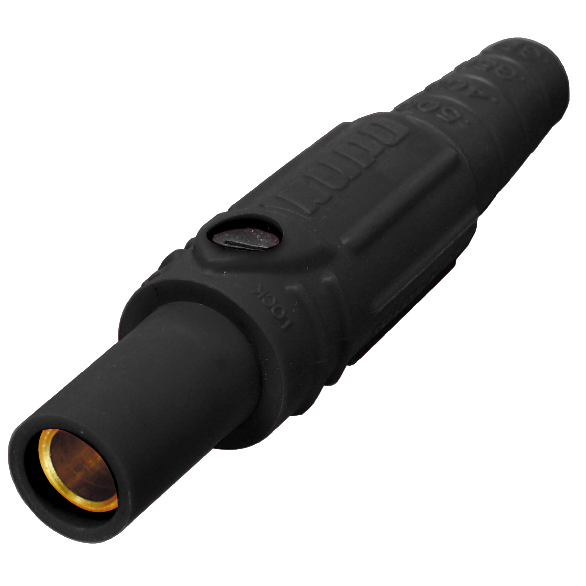

FEMALE CAM LOCK CONNECTOR 600VAC/DC 150AMP BLACK TPV NEMA 3R 2-SET SCREW BRASS CONTACT #8 - #2 AWG

SKU: KL-150LFBK
Material: TPV
Download Spec Sheet

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Cam Lock Connector Product Details:

Amperage Rating - 150 Amp Maximum
Configuration - Female Connector
Voltage Rating - 600V Maximum
Color Code - Black
Protection Degree - NEMA 3R
Cable Size Range - #8 Awg - #2 Awg
Cable O.D. Range - Up to 0.54" (13.6mm)

Compatibility Reference Standards:

Compatible with other brands of 150 Amp cam-type connector.

Ratings:

UL/cUL Listed


Materials for 150 Amp Connectors:

Housing Base Compound: Santoprene® - Temperature Rating 221°F (105°C)
Contact Material: Brass
Retaining Pin Material: POM (Polyoxymethylene)

Spec Sheets 150-Amp-Cam-Lock-Connectors.pdf
Wire Guage #8 - #2
Unit of Measure Quantity 1
Unit Of Measure EA
