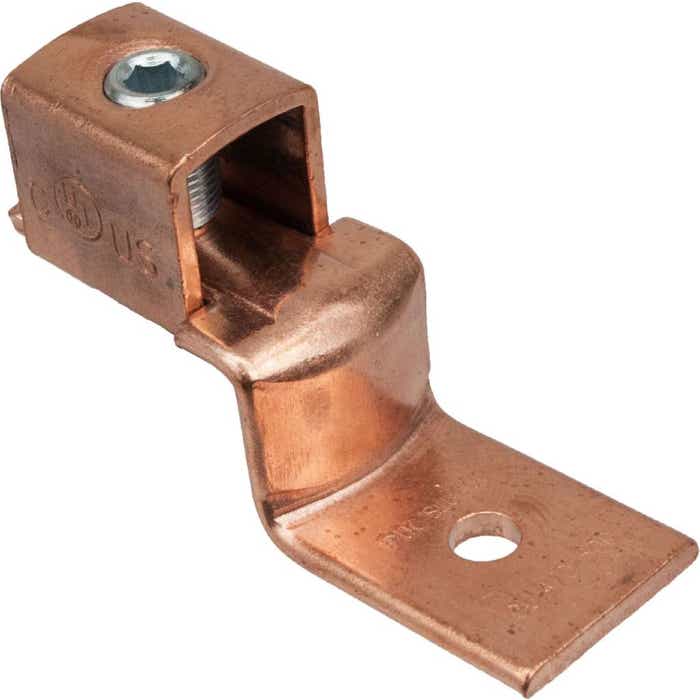

COPPER SOLDERLESS LUG 4/0-500MCM 1 COLLAR 1 HOLE (.41") 400AMPS
Main image
Click to view image in fullscreen
![]()
SKU:
SLU400
Material:
Copper
$31.58
/EA
$31.58
/EA
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days
Ships from our warehouse in Sanborn, NY 14132
Need Help
Talk to a Product Expert M-F 8am-5:30pm EST
1-800-701-0975
Email us for Quick Support
Email UsCopper Solderless Lugs Product Details:
SLU series copper solderless lugs are manufactured with a unique design with a concave pressure bar and V-bottom collar that assures positive contact and a secure permanent grip.
Style - Solderless Lug
Material - Electrolytic Copper
Cable Range - 4/0 Awg - 500 MCM Stranded
Screw Type - Hex Screw
Conductors - 1
Ampere Rating NEC - 400 Amps
Mounting Holes - 1
Hole Diameter - 0.41"
Length - 4.25"
Width - 1.50"
Approvals
cULus
CSA
RoHS Compliant
