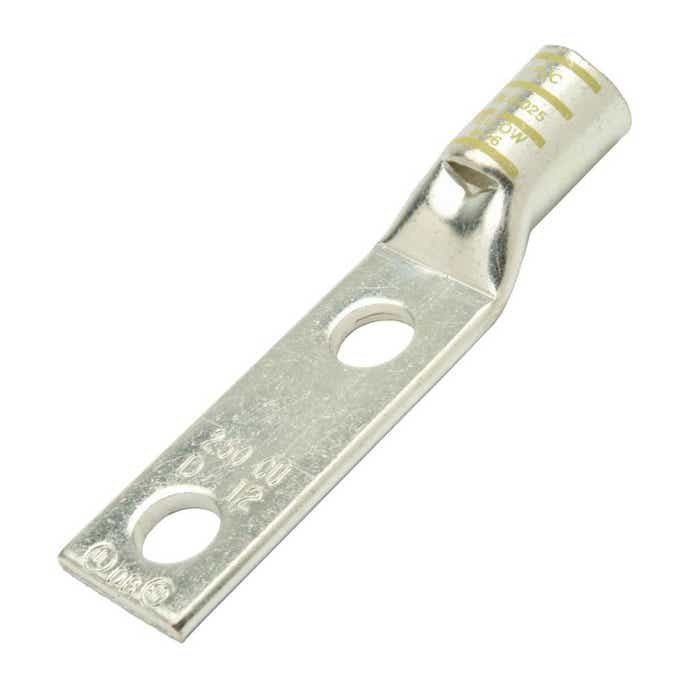

SHORT BARREL COPPER LUG 250MCM 1/2" YELLOW 2HOLE

SKU: BLU025D
Material: Copper
$9.68
/EA
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

Copper Compression Lug Product Details:

Barrel - Short
Conductor Size - Copper Conductor Size 250 kcmil
Material - Tin-plated seamless copper tubing
Length - 4.44"
Barrel Length - 1.06"
Wire Strip Length - 1-3/16"
Color Code - Yellow

Holes - 2

Stud Hole Size - 1/2"

Penn-Union Dieless Tool - TDM250 or TDM500


Approvals

UL Listed (UL486A-B)

CSA (per C22.2 No.65 for power applications)
RoHS
