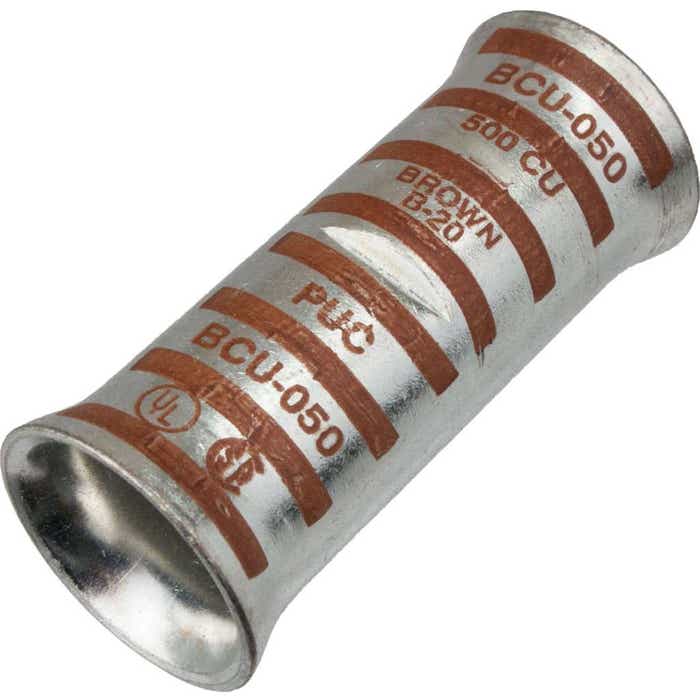

SHORT BARREL COPPER SPLICE 373MCM BROWN FLARED

SKU: BCU050FL
$23.50
/EA
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone1-800-701-0975

Email us for Quick Support

emailEmail Us

DLO Cable Flared Copper Compression Splice Product Details:

Barrel - Flared
Conductor Size - Copper Conductor Size 500 MCM; DLO CABLE - 925/24
Material - Tin-plated seamless copper tubing
Suitable for use with Class B, C, I, K, H, G, M and DLO Conductors
Length - 2.84"
Insertion Length - 1.38"
Wire Strip Length - 1-1/2"
Color Code - Brown


Approvals

UL Listed

CSA
RoHS
