SKU: SCM330B7W

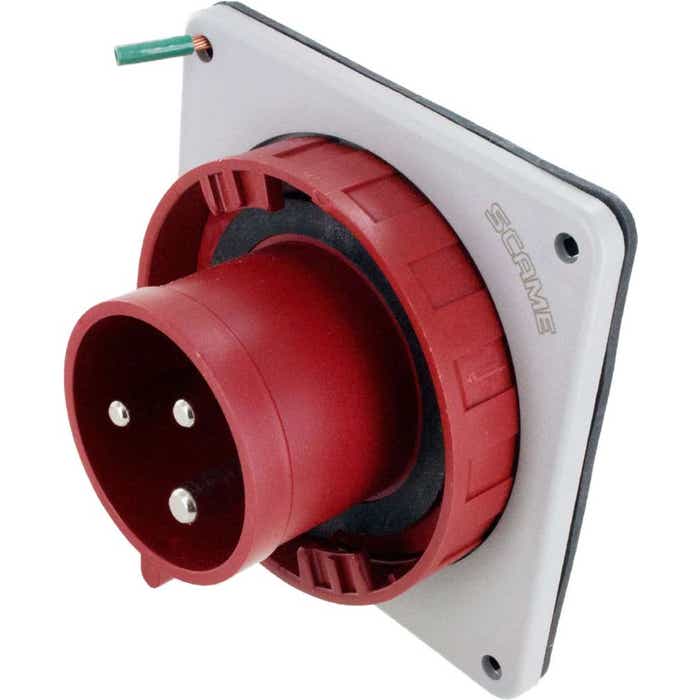

IP67 INLET 30A 480VAC 2P 3W WATERTIGHT

  • Red

Be the first to review this product

More Views

More Views

SKU: SCM330B7W

IP67 INLET 30A 480VAC 2P 3W WATERTIGHT
  • Red
  • Manufactured In: Italy
  • Shipping: Available to ship in: 1-2 Days
OR

Need help?

Talk to a Product Expert M-F 8am-5pm EST

1-800-701-0975

Email us for Quick Support

Email Us

Frequently Bought With

  1. ROD CLOSING  SINGLE EYE  .63-.74

    SKU: 2203-014

    ROD CLOSING SINGLE EYE .63-....

    $32.55 / EA
  2. ROD CLOSING  SINGLE EYE  .75-.99

    SKU: 2203-015

    ROD CLOSING SINGLE EYE .75-....

    $34.49 / EA
  3. FITS 60/63A RECEPTACLES, FITS 16/20/30/32/60/63A INLETS, 1 1/4" HUB, W/GROUNDING

    SKU: SCMBB02

    FITS 60/63A RECEPTACLES, FITS ...

    $65.99 / EA
  4. LED, DUAL FUNCTION FLOOD/SPOT, 120/12 LUMENS, DUAL POSITION MA

    SKU: SLR-2166

    LED, DUAL FUNCTION FLOOD/SPOT,...

    $38.68 / EA

More Specs

Pin and Sleeve Connector Product Details:

Pole/Wires - 2 Pole 3 Wire
Clock Position - 7h
Configuration - Male Inlet
Voltage - 480V AC
Amperage - 30 Amp
Color Code - Red
Protection Degree - IP67 Watertight
Cable Size Range - #10 Awg - #8 Awg (S, SO, SOW cable)
Cable O.D. Range - .675" - .910"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 330B7W inlets.

Mates with: 330C7W

Ratings

UL - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Documents

Download Attachment
pdf330B7W Line Drawing(172.81 KB )Download
pdf330B7W Installation Instructions(166.63 KB )Download
