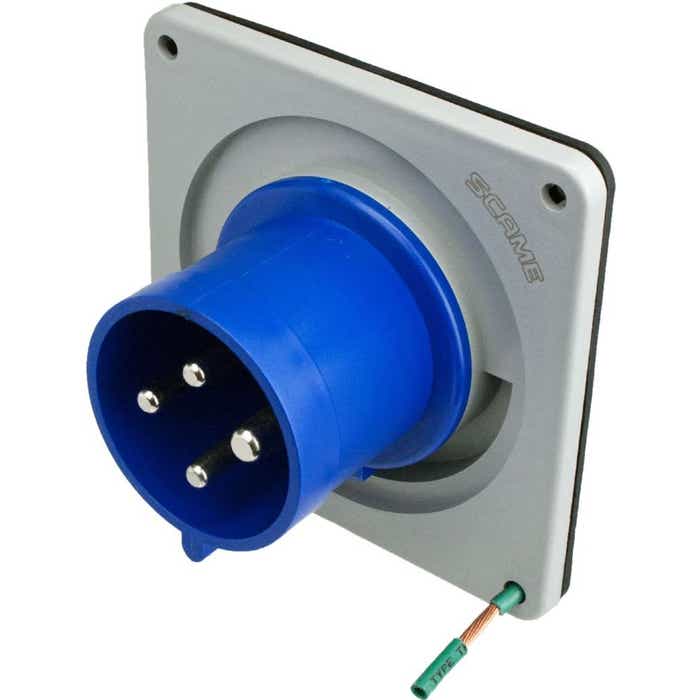

PIN & SLEEVE MALE INLET 30AMP 3 Phase 250VAC 3P 4W IP44 SPLASHPROOF

SKU: SCM430B9S
Download Spec Sheet
Manufactured In: Italy
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Pin and Sleeve Connector Product Details:

Pole/Wires - 3 Pole 4 Wire
Clock Position - 9h
Configuration - Male Inlet
Voltage - 3 Phase 250V AC
Amperage - 30 Amp
Color Code - Blue
Protection Degree - IP44 Splashproof
Cable Size Range - #12 Awg - #8 Awg (S, SO, SOW cable)
Cable O.D. Range - .675" - .910"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 430B9S inlets.

Mates with: 430C9S

Ratings

UL - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Spec Sheets 30-Amp-Pin-And-Sleeve-Connectors-Splashproof.pdf
Made In Italy
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
