SKU: SCM5125C6W

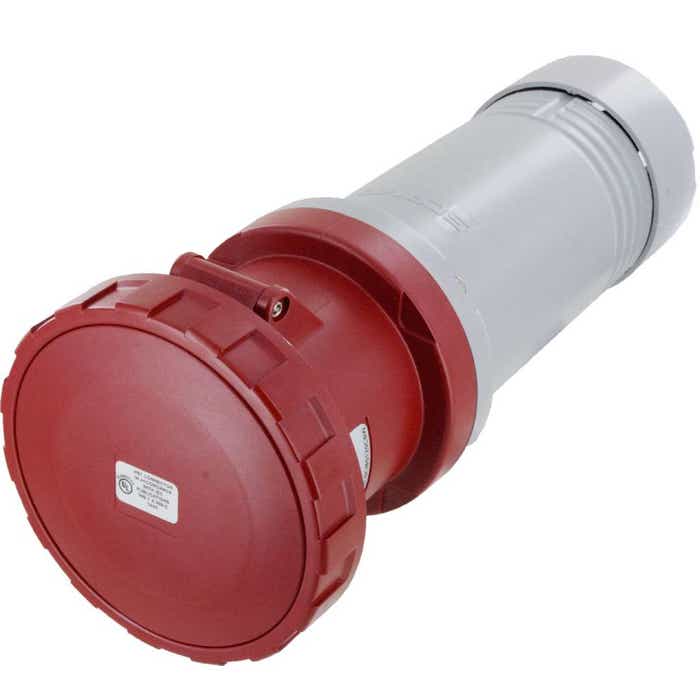

PIN & SLEEVE CONNECTOR 125AMP 220-240/380-415VAC 4P 5W IP67 WATERTIGHT

  • Red

Be the first to review this product

More Views

More Views

SKU: SCM5125C6W

PIN & SLEEVE CONNECTOR 125AMP 220-240/380-415VAC 4P 5W IP67 WATERTIGHT
  • Red
  • Manufactured In: Italy
  • Shipping: Available to ship in: 1-2 Days
OR

Need help?

Talk to a Product Expert M-F 8am-5pm EST

1-800-701-0975

Email us for Quick Support

Email Us

Frequently Bought With

  1. PIN & SLEEVE INLET 125AMP 220-240/380-415VAC 4P 5W IP67 WATERTIGHT

    SKU: SCM5125B6W

    PIN & SLEEVE INLET 125AMP ...

    $208.77 / EA

More Specs

Product Details:

Pole/Wires - 4 Pole 5 Wire
Clock Position - 6h
Configuration - Female Connector
Voltage - 220-240V/380-415V AC
Amperage - 125 Amp
Color Code - Red
Protection Degree - IP67 Watertight
Cable Size Range - #4 Awg - #1 Awg (G or W cable)
Cable O.D. Range - 1.265" - 1.79"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 5125C6W connectors.

Mates with: 5125P6W / 5125B6W

Ratings

UL Classified - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Documents

Download Attachment
pdf5125C6W Line Drawing(142.45 KB )Download
pdf5125C6W Installation Instructions(166.63 KB )Download
