SKU: SCM5100R7W

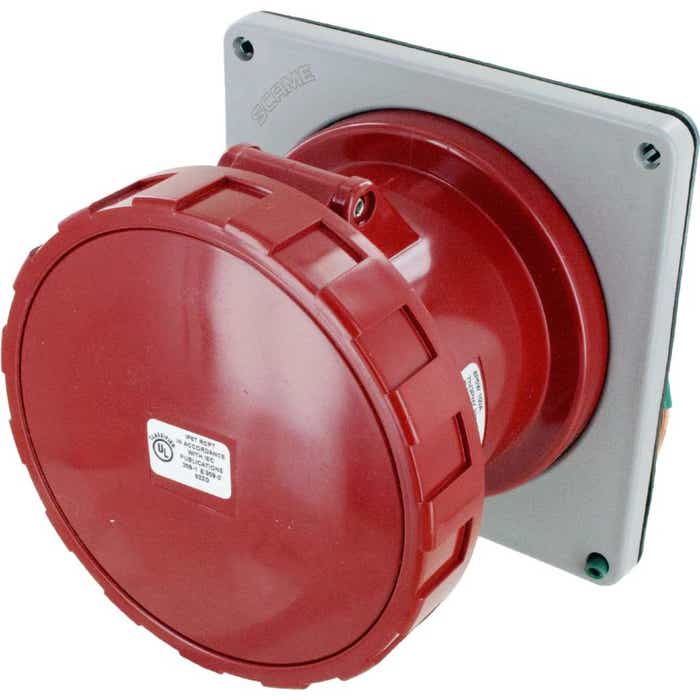

PIN & SLEEVE RECEPTACLE 100AMP 3Phase 277/480VAC 4P 5W IP67 WATERTIGHT

  • Red

Be the first to review this product

More Views

More Views

SKU: SCM5100R7W

PIN & SLEEVE RECEPTACLE 100AMP 3Phase 277/480VAC 4P 5W IP67 WATERTIGHT
  • Red
  • Manufactured In: Italy
  • Shipping: Available to ship in: 1-2 Days
OR

Need help?

Talk to a Product Expert M-F 8am-5pm EST

1-800-701-0975

Email us for Quick Support

Email Us

Frequently Bought With

  1. ROD CLOSING  SINGLE EYE  1.25-1.49

    SKU: 2203-017

    ROD CLOSING SINGLE EYE 1.25-...

    $43.95 / EA
  2. ROD CLOSING  SINGLE EYE  1.50-1.74

    SKU: 2203-018

    ROD CLOSING SINGLE EYE 1.50-...

    $61.09 / EA
  3. PIN & SLEEVE PLUG 100AMP 3Phase 277/480VAC 4P 5W IP67 WATERTIGHT

    SKU: SCM5100P7W

    PIN & SLEEVE PLUG 100AMP 3...

    $215.79 / EA
  4. FITS 100/125A RECEPTACLES & INLETS, 1 1/2" HUB, W/GROUNDING PLATE, 120 CUBIC INC

    SKU: SCMBB03

    FITS 100/125A RECEPTACLES &...

    $126.99 / EA

More Specs

Product Details:

Pole/Wires - 4 Pole 5 Wire
Clock Position - 7h
Configuration - Female Receptacle
Voltage - Three Phase 277/480V AC
Amperage - 100 Amp
Color Code - Red
Protection Degree - IP67 Watertight
Cable Size Range - #4 Awg - #1 Awg (G or W cable)
Cable O.D. Range - 1.265" - 1.79"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 5100R7W receptacles.

Mates with: 5100P7W

Ratings

UL - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Documents

Download Attachment
pdf5100R7W Line Drawing(258.59 KB )Download
pdf5100R7W Installation Instructions(166.63 KB )Download
