SKU: SCM5100P9W

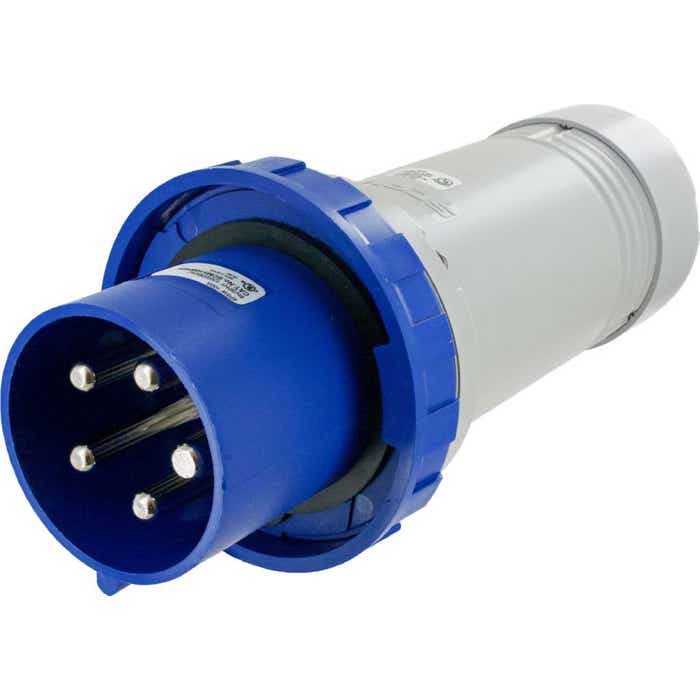

PIN & SLEEVE PLUG 100AMP 3Phase 120/208VAC 4P 5W IP67 WATERTIGHT

  • Blue

Be the first to review this product

More Views

More Views

SKU: SCM5100P9W

PIN & SLEEVE PLUG 100AMP 3Phase 120/208VAC 4P 5W IP67 WATERTIGHT
  • Blue
  • Manufactured In: Italy
  • Shipping: Available to ship in: 1-2 Days
OR

Need help?

Talk to a Product Expert M-F 8am-5pm EST

1-800-701-0975

Email us for Quick Support

Email Us

Frequently Bought With

  1. WATERTIGHT CAP FOR 100A/125A WIRE MALE PLUG/INLET

    SKU: 570.9125

    WATERTIGHT CAP FOR 100A/125A W...

    $10.49 / EA
  2. IP67 CONNECTOR 100A  3phase delta 120/208  4P 5W  WATERTIGHT

    SKU: SCM5100C9W

    IP67 CONNECTOR 100A 3phase de...

    $231.46 / EA
  3. PIN & SLEEVE RECEPTACLE 100AMP 3Phase 120/208VAC 4P 5W IP67 WATERTIGHT

    SKU: SCM5100R9W

    PIN & SLEEVE RECEPTACLE 10...

    $222.93 / EA

More Specs

Product Details:

Pole/Wires - 4 Pole 5 Wire
Clock Position - 9h
Configuration - Male Plug
Voltage - Three Phase 120/208V AC
Amperage - 100 Amp
Color Code - Blue
Protection Degree - IP67 Watertight
Cable Size Range - #4 Awg - #1 Awg (G or W cable)
Cable O.D. Range - 1.265" - 1.79"

Compatibility Reference Standards

IEC60309
Plugs, socket-outlets and couplers for industrial purposes.
IEC60309-1
General requirements
IEC60309-2
Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Allows complete interchangeable mating between all major manufacturers of 5100P9W plugs.

Mates with: 5100C9W / 5100R9W

Ratings

UL - E238170

cULus - E238171, E238172


Materials for Pin & Sleeve Connectors

Housing: Valox®
Contact Carriers: Valox®
Cable Gland Nut: Valox®
Cable Bushing: Solid Neoprene, Onion Ring Type
O-Ring, Seals & Gaskets: Solid Neoprene
Pins & Sleeves: Nickel Plated Brass
Sleeve Force Ring: Zinc Plated Steel
Terminal Screws: Nickel Plated Steel
Flap/Screw Cover Springs: Stainless Steel
SNAP-ON Spring: Stainless Steel
Mounting Flanges: Valox®

Documents

Download Attachment
pdf5100P9W Line Drawing(161.97 KB )Download
pdf5100P9W Installation Instructions(166.63 KB )Download
