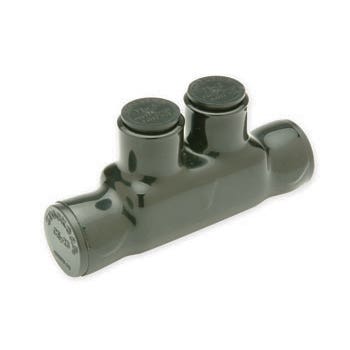

BLACK INSULATED SPLICER REDUCER #14 to #2 CABLE RANGE

SKU: IISRB2
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Insulated Multi-Tap Connector Product Details:

IISR series insulated multi-tap connectors are rated for voltages up to 600V and are suitable for use in cable trays, raceways, ducts and troughs. Pre-filled with an oxide inhibitor that prevents oxidation, moisture and contaminants from entering the contact area. Pre-insulated at factory with clear high dielectric strength plastisol.

Style - Pre-Insulated In-Line Splicer /Reducers
Conductor Material - High strength aluminum alloy
Wire Range - #14 - #2 Awg
Insulation Type - Black
Length - 2.38"
Width - 0.75"
Height - 1.22"
Hex Screw Size - 5/32


Approvals

cULus - AL9CU
RoHS

Spec Sheets Aluminum-Pre-Insulated-Inline-Splicer-Reducer.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
