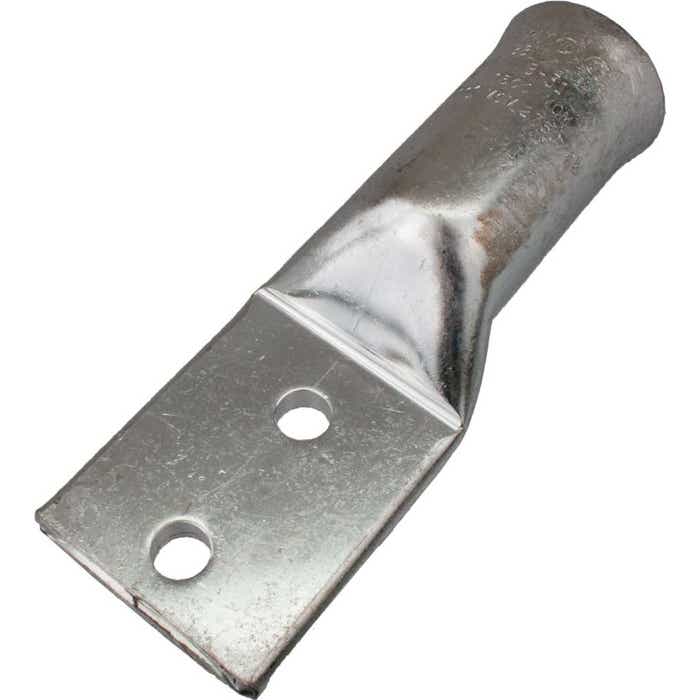

LONG BARREL COPPER LUG 1111MCM DLO/WELDING CABLE (1500MCM STANDARD CONDUCTOR) 2 HOLES 1/2" FLARED

SKU: BBLU150D1FL
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

DLO Cable Flared Copper Compression Lug Product Details:

Barrel - Long Flared
Conductor Size - DLO CABLE 1111 MCM; Copper Conductor Size 1500 MCM
Material - Tin-plated seamless copper tubing
Suitable for use with Class B, C, I, K, H, G, M and DLO Conductors
Length - 7.44"
Barrel Length - 3.19"
Wire Strip Length - 3-5/16"
Color Code - Green

Holes - 2

Stud Hole Size - 1/2"


Approvals

UL Listed

CSA
RoHS

Spec Sheets 118WMP.pdf
Type Lug
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
