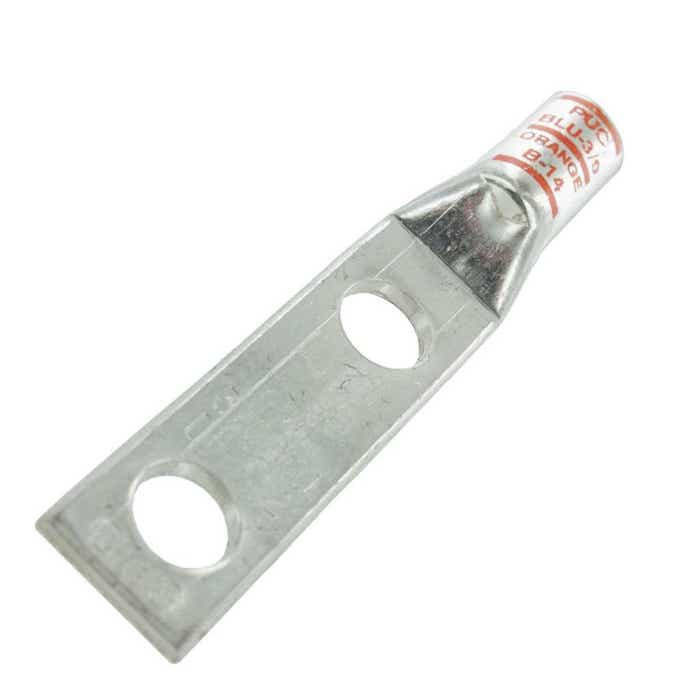

SHORT BARREL COPPER LUG 3/0STR 5/16" ORANGE 2HOLE

SKU: BLU3/0D11
Material: Copper
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Copper Compression Lug Product Details:

Barrel - Short
Conductor Size - Copper Conductor Size 3/0 Awg
Material - Tin-plated seamless copper tubing
Length - 3.00"
Barrel Length - 1.00"
Wire Strip Length - 1-1/8"
Color Code - Orange

Holes - 2

Stud Hole Size - 5/16"

Penn-Union Dieless Tool - TDM250 or TDM500


Approvals

UL Listed (UL486A-B)

CSA (per C22.2 No.65 for power applications)
RoHS

Spec Sheets 82WMP.pdf
Type Lug
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
