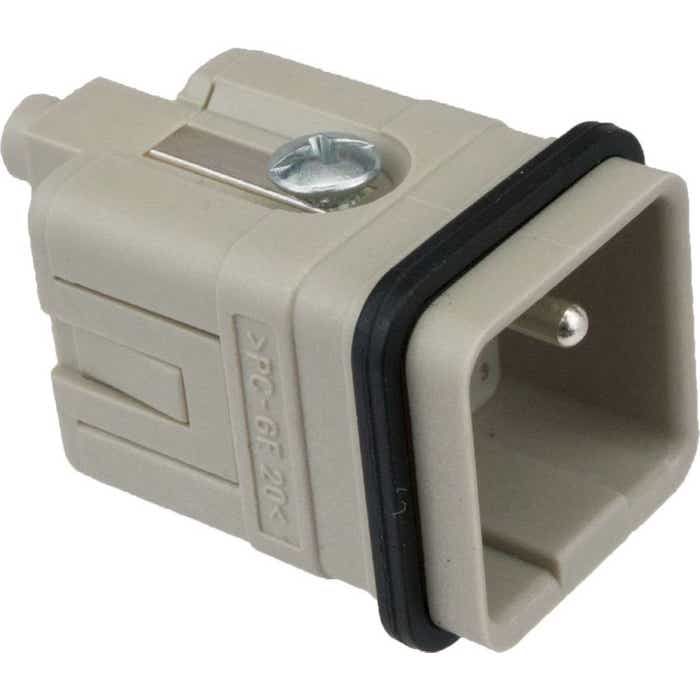

MALE INSERT- CRIMP TERMINAL 5P+Ground (ILME CQM 05)

SKU: E05PC
Download Spec Sheet
Manufactured In: Italy
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

ILME Rectangular Connector Product Details:

Poles - 5 Pole + Ground
Configuration - Male Insert
Voltage - 600V AC
Amperage - 16 Amp Max
16A Crimp Contacts sold separately
Protection Degree - IP66
Wire Range - #22 Awg - #12 Awg
Operating Temperature: -40°F to 257°F (-40°C to 125°C)

ILME Part # CQM05

Ratings

CSA - LR 82270-9 (Inserts only)

cUL Component Recognized E115072(R) (Housings only)

DIN VDE 0627 Standard

DIN 43652 Standard

RoHS Compliant

IP66 (EN 60529): 1991 + A1: 2000

CE 93/68/CEE

Spec Sheets Rectangular-Industrial-Connectors-E05PC-CQM-05.pdf
Made In Italy
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure EA
