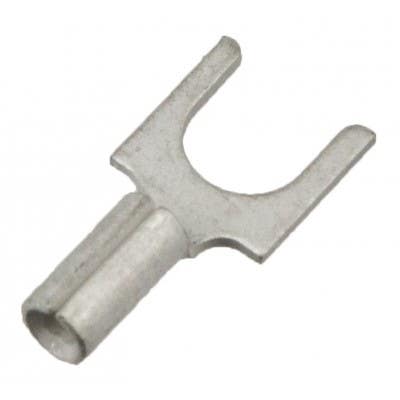

BLOCK SPADE NON-INSULATED 16-14 #6 1000PK

SKU: BS1B6M
Material: Non-Insulated
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Crimp Terminal Product Details:

Style - Block Spade / Fork Terminal
Barrel Type - Butted Seam
Material - Tin-Plated Copper
Wire Range - 16-14 Awg
Stud (Hole) Size - #6 (.138")
Thickness - .032" stock
Voltage - 600V Max
Temperature - continuous duty from -67°F to 221°F (-55°C to 105°C)

Approvals

UL
CSA
TUV
RoHS

Spec Sheets 25WMP.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure PK
