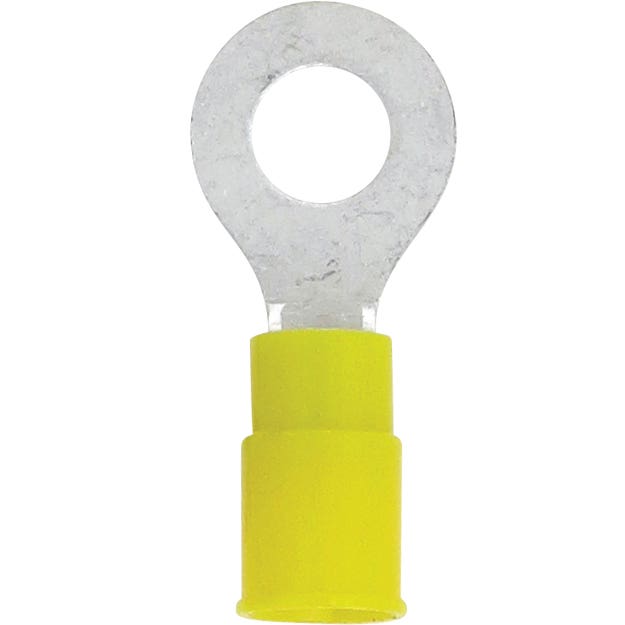

RING TERMINAL PVC YELLOW 12-10 1/4" SM RING 1000PK

SKU: R4C14SM
Material: PVC
Download Spec Sheet
Manufactured In: United States
Shipping: Available to ship in: 1-2 Days

Ships from our warehouse in Sanborn, NY 14132

Need Help

Talk to a Product Expert M-F 8am-5:30pm EST

phone 1-800-701-0975

Email us for Quick Support

email Email Us

Crimp Terminal Product Details:

Style - Ring Terminal
Insulation - Vinyl (PVC) insulated sleeve
Color - Yellow
Wire Range - 12-10 Awg
Stud (Hole) Size - 1/4" (.250")
Thickness - .040" stock
Voltage - 600V Max
Temperature - continuous duty from -67°F to 221°F (-55°C to 105°C)

Approvals

UL
CSA
TUV
RoHS

Spec Sheets 56WMP.pdf
Made In United States
Shipping 1-2 Days
Unit of Measure Quantity 1
Unit Of Measure PK
